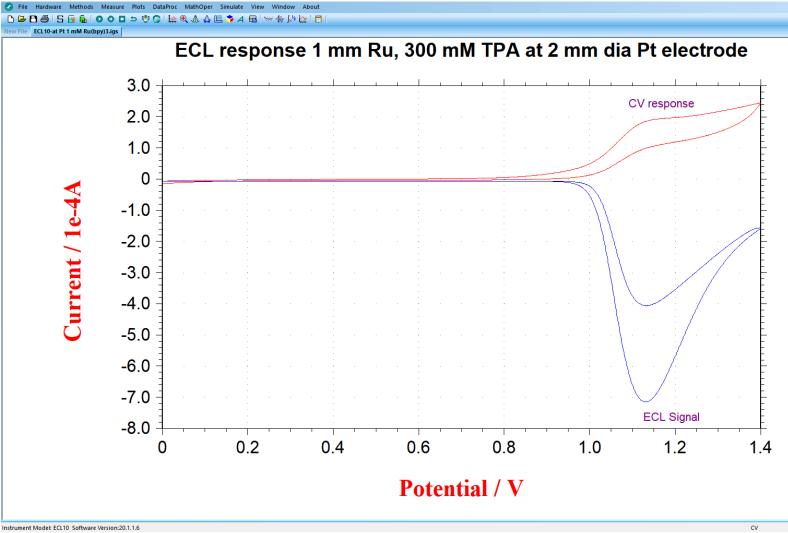

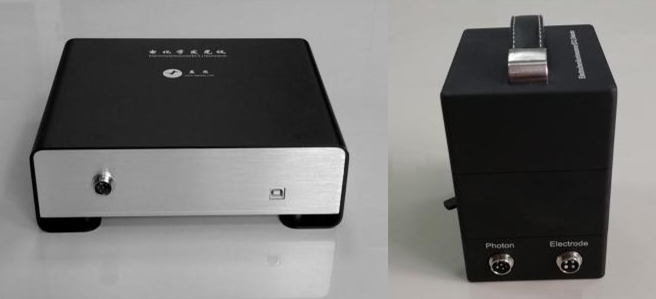

Ingsens ECL10 is a computer-controlled and fully automatic electrochemiluminescent (ECL) analyzer. Both the ECL and electrochemical signal can be detected simultaneously or independently. The system contains an advanced MCU for digital function generator with a high speed data acquisition circuit, ECL acquisition board and a potentiostat. The instrument provides a very wide dynamic range of luminescence experimental sensitivity scales using a multiple-pixel photon counter (MPPC). The instrument with MPPC detector utilizes very small pixels arrayed at high densities to achieve a high sensitivity, low afterpulse, wide dynamic range and a fast recovery time for ECL measurement. The spectral response of the MPPC is 320-900 nm with a maximum response at 460 nm. The number of MPPC pixel is 40000, using a 70 V driving potential. The output potential range is ±2.4 V and the current range of ±2 mA for the potentiostat. The potentiostat is capable of measuring current down to 100 pA. The size of the instrument is 24.3 cm (W) × 20.3 cm (D) × 8.1 cm (H) with a net weight of 800 g, and it is powered through a USB port, without any need for an AC adapter or batteries.



Wave response of multiple-pixel photon counter: 320-920 nm

Maximum wave response of photon counter: 460 nm

Number of pixels: 40000

Photosensitive area of photon counter: 3 x 3 mm

Driving potential for photon counter: +70 V

Maximum ECL response: 27 %

Potentiostat output potential: ±2.4 V

Potentiostat current range: ±2 mA

Input Impedance of Reference Electrode: 10¹² ohm

Minimum Potential Increment in Sweep Techniques: 0.1 mV

Current scale: 10^-9 - 0.001 A in 7 ranges

Input bias current: < 100 pA

Current measurement resolution: < 1 pA

Power: supplied by PC through USB port



Electroluminescent techniques (7 methods）
Cyclic Voltammetry (CV)，Linear Sweep Voltammetry (LSV)，Chronoamperometry (CA)，Differential Pulse Voltammetry (DPV)，Normal Pulse Voltammetry (NPV)，Square Wave Voltammetry (SWV)，Amperometric i-t Curve (IT)

 Electrochemical Techniques （17 methods）
Cyclic Voltammetry (CV)，Linear Sweep Voltammetry (LSV)，Chronoamperometry (CA), Anson Plot (AP), Differential Pulse Voltammetry (DPV), Normal Pulse Voltammetry (NPV), Differential Normal Pulse Voltammetry (DNPV), Square Wave Voltammetry (SWV), AC Voltammetry (ACV), Amperometric i-t Curve (i-t), Differential Pulse Amperometry (DPA), Double Differential Pulse Amperometry (DDPA), Triple Pulse Amperometry (TPA), Sweep-Step Functions (SSF), Multi-Potential Steps (STEP), Open Circuit Potential - Time (OCPT)
