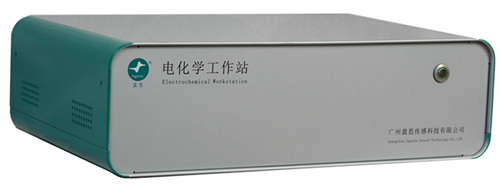

  product name:Bipotentiostat IGS6000

  product model:IGS6000 series
  product description:


      IGS6030 instrument is a computerized research grade bipotentiostat/galvanostat with AC impedance technique. Potential applications range from rotating ring-disk electrode (RRDE) experiments to any applications where dual-channel measurements are essential, such as dual channel electrochemical detection. Particularly, the spectroscopy function can be integrated multiple-channel LEDs with IGS6030. The system contains a fast digital function generator, high-speed data acquisition circuitry, a potentiostat or bipotentiostat and a galvanostat and/or AC impedance analyzer (select models). The potential control range is ±10 V and the current range is ±250 mA (sum of dual-channel). The instrument is capable of measuring current down to picoamperes. The steady state current of a 10 μm disk electrode can be readily measured without external adapters. The instrument provides a very wide dynamic range of experimental time scales. For instance, the scan rate in cyclic voltammetry can be up to 1000 V/s with a 0.1 mV potential increment or 5000 V/s with a 1 mV potential increment. The potentiostat / galvanostat uses a four-electrode configuration and can be used for liquid/liquid interface measurements or to eliminate the effects of connector contact resistance and relays for high current measurements.
     The instrument can be used as a single-channel potentiostat by setting the software interface. When used as a bipotentiostat, the second channel can be controlled at a independent constant potential, to scan or step at the same potential as the first channel, or to scan with a constant potential difference with the first channel. Techniques available for the second channel include CV, LSV, SCV, AP, DPV, NPV, SWV, and i-t.

Hardware Specifications for IGS6000 Series
Bipotentiostat and Galvanostat                               Maximum current: ±250 mA in 12 scales
Compliance Voltage: ±12 V                                     Potentiostat rise time: < 1 μs
Output potential ranges: ±10 V                               Potential resolution: 0.0015%
Potential accuracy: ±1 mV, ±0.01% of scale         Output potential noise: < 10 μV
Current range: ±10 pA to ±250 mA                         Measured current resolution: < 10 fA
Input bias current: < 50 pA                                        2- or 3- or 4-electrode configuration
Floating or earth ground (GND)                               Galvanostat i range: 3 nA - 250 mA
Output current accuracy: 20 pA ±0.2%                   Output i resolution: 0.03%
E range: ±0.025, ±0.1, ±0.25, ±1, ±2.5, ±10V        E resolution: 0.0015%
Waveform update: 16-bit DAC at 10 MHz               Data acquisition: 16-bit ADC at 1 MHz
Reference input impedance: 1e12 ohm                  Weight: 4.2 kg
Dimensions: 15.30” (W) x 9.50”(D) x 5.10”(H)
Methods Specifications
CV and LSV scan rate: 0.000001 to 10000 V/s          Potential increment: 0.1 mV@1000 V/s
CA and CC pulse width: 0.0001 to 1000 sec             CA and CC Steps: 320
DPV and NPV pulse width: 0.001 to 10 sec               SWV frequency: 1 to 100 kHz
ACV frequency: 0.1 to 10 kHz                                      SHACV frequency: 0.1 to 5 kHz
IMP frequency: 0.00001 to 1000 kHz                          Cell control: stir for experiments
Software Features
Automatic and manual iR compensation
Automatic and manual DAC, ADC and i/V Filters
USB 2.0 for data communication
Smoothing, Derivative, integration;
Fourier Transform and much more
Automatic and manual Find Peaks
Windows XP, 7, 8, or 10

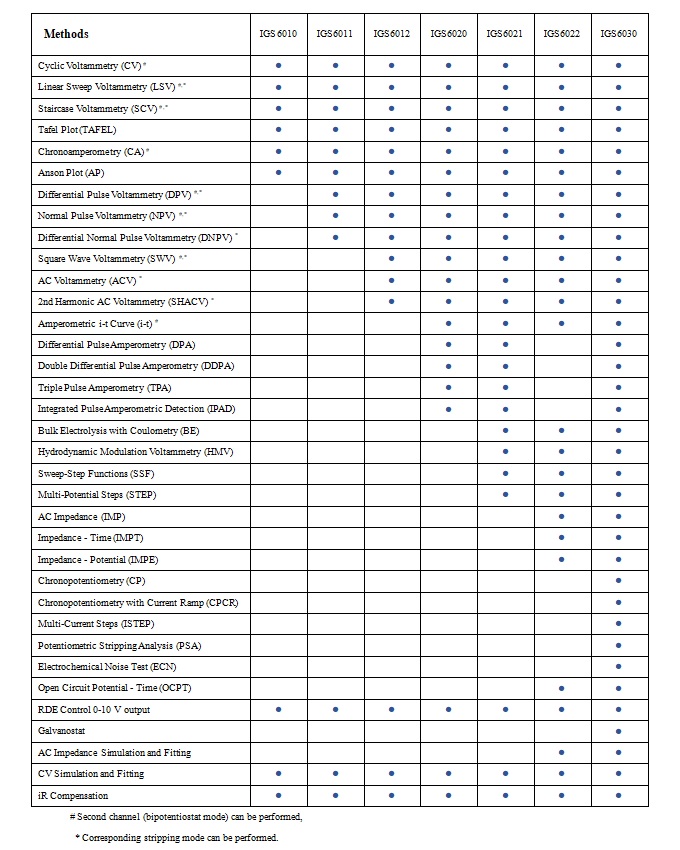

Models

Software Interface
