  product name:Large Current Electrochemical Workstation IGS4200
  product model:IGS4200 series Large Current
  product description:
Ingsens IGS4200 series are computer-controlled, fully automatic and power electrochemical measurements. The system contains an advanced MCU for digital function generator with a high speed data acquisition circuit. IGS4210 works as a potentiostat/galvanostat while IGS4220 and 4230 have AC impedance. The potentiostat/galvanostat uses a 4-electrode configuration, allowing it to be used for liquid/liquid interface measurements and eliminating the effect of the contact resistance of connectors and relays for high current measurements. The instruments are designed for electrochemical applications that require relatively large current and high compliance voltage, such as battery studies, supercapacitors, electrolysis, and electroplating. The potential control range is ±10 V, the current range is ±2 A, and the compliance voltage is ±25 V.
Hardware Specifications for Large Current Potentiostat IGS4200 Series
Potentiostat and Galvanostat and AC Impedance
Maximum current: ±2 A in 12 current scales
Compliance Voltage: ±25 V
Potentiostat rise time: < 1 μs, 0.8 μs typical
Output potential ranges: ±10 V
Potential resolution: 0.0015% of potential range
Potential accuracy: ±1 mV, ±0.01% of scale
Output potential noise: < 10 μV
Measured current range: ±1 nA to ±2 A in 12 current scales
Measured current resolution: < 1 pA
Input bias current: < 50 pA
3- or 4-electrode configuration
Floating (isolated from earth) or earth ground (GND)
Galvanostat applied current range: 3 nA - 2 A
Output current accuracy: 20 pA ±0.2% if > 3e-7A, ±1% otherwise
Output current resolution: 0.03% of applied current range
Measured potential range: ±0.025, ±0.1, ±0.25, ±1, ±2.5, ±10 V in 3 scales
Measured potential resolution: 0.0015% of measured range
Fast waveform update: 16-bit DAC at 10 MHz or 24-bit DAC at 1 MHz
Fast data acquisition: 16-bit ADC at 1 MHz
Reference electrode input impedance: 1x1012 ohm
Dimensions: 15.30” (W) x 9.50”(D) x 5.10”(H)
Weight: 8.0 kg.
Methods Specifications
CV and LSV scan rate: 0.000001 to 10000 V/s
Potential increment during scan: 0.1 mV @ 1000 V/s and 1 mV @ 5000 V/s
CA and CC pulse width: 0.0001 to 1000 sec
CA and CC Steps: 320
DPV and NPV pulse width: 0.001 to 10 sec
SWV frequency: 1 to 100 kHz
ACV frequency: 0.1 to 10 kHz
SHACV frequency: 0.1 to 5 kHz
IMP frequency: 0.00001 to 100 kHz
Software Features
Automatic and manual iR compensation
Current measurement bias: full range with 16-bit resolution
Automatic and manual DAC, ADC and i/V Filters
RDE control output: 0-10 V (corresponding to 0-10000 rpm)
USB 2.0 for data communication
Smoothing; Derivative, integration; Fourier Transform and much more
Automatic and manual Find Peaks
Windows XP, 7, 8, or 10

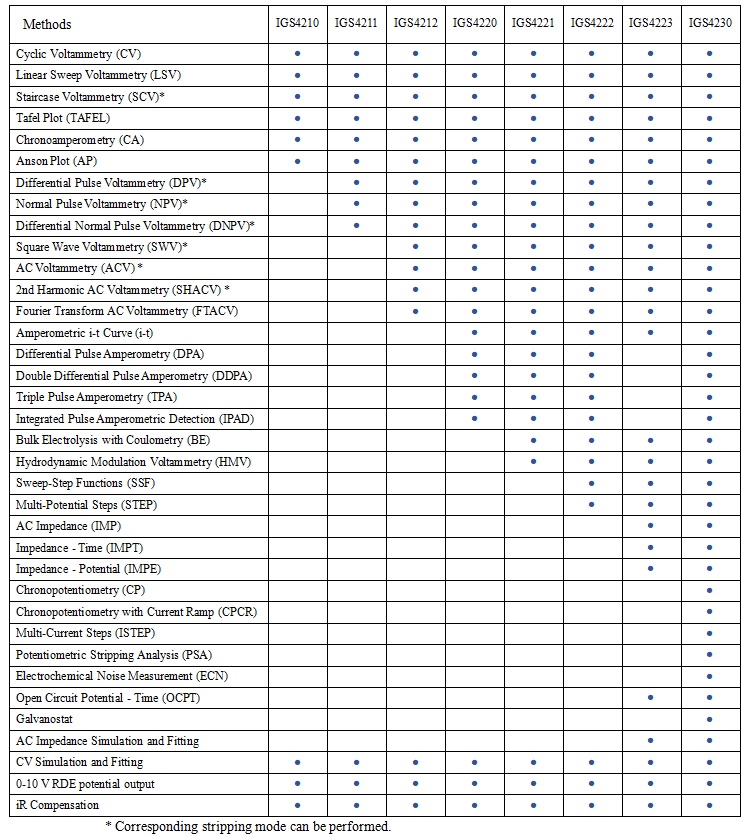

Models and Electrochemical Methods

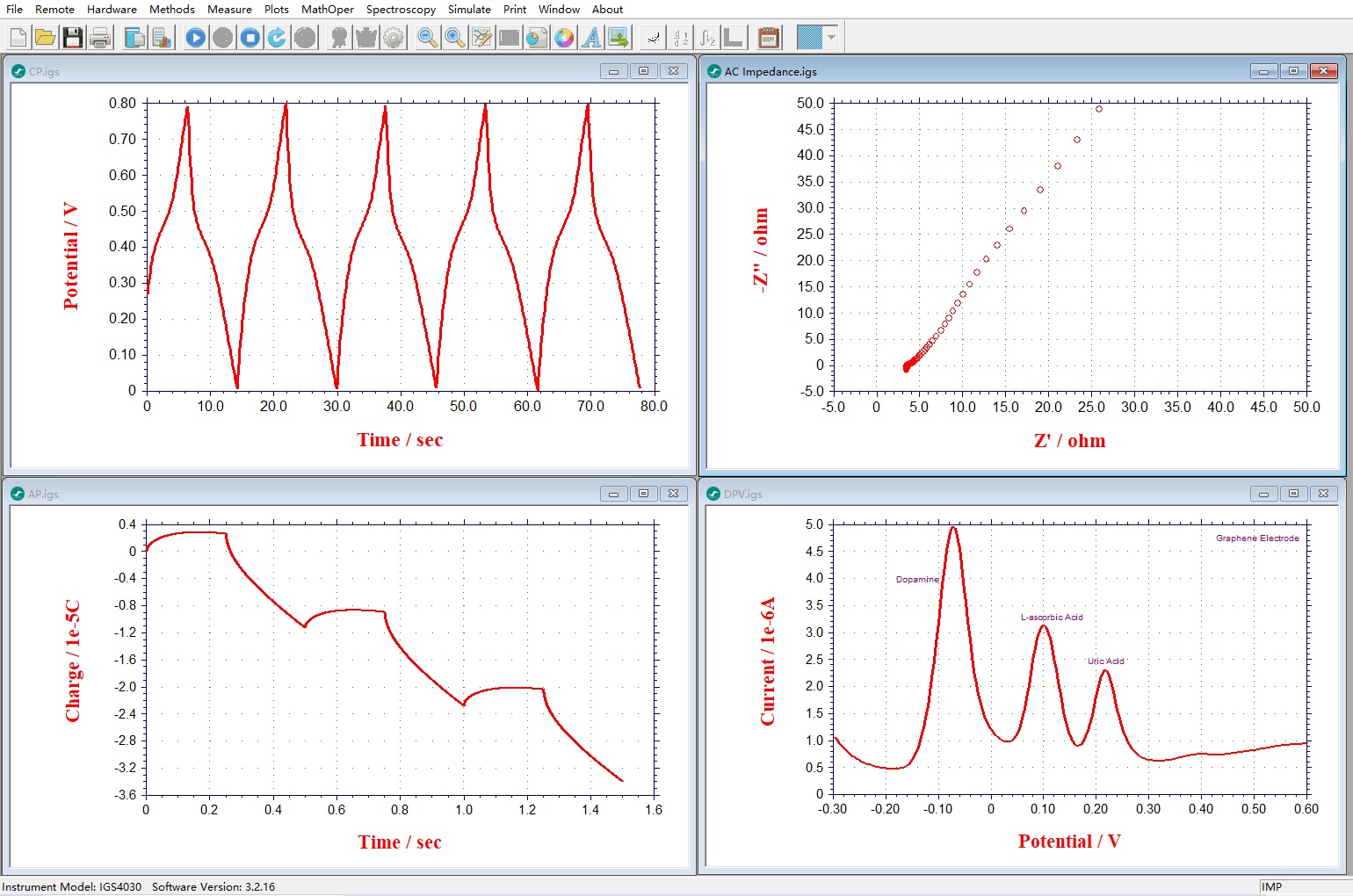

Software Interface
